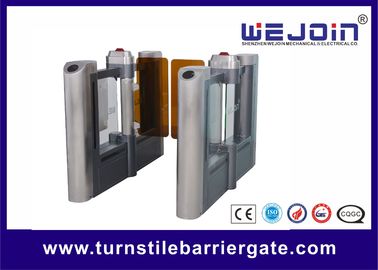

Stainless Steel Double Automatic Swing Barrier Gate With Dry Contact Interface

Informasi Dasar
Place of Origin: China
Nama merek: WEJOIN
Sertifikasi: CE,ISO
Model Number: WITB201
Minimum Order Quantity: 1PC
Harga: negotiation
Packaging Details: wooden box
Delivery Time: 5-10 days
Payment Terms: Telex Release
Supply Ability: 50PCS/week
Informasi Detail
Housing material: Stainless Steel 304 Relative Humidity: ≤95%
Protection Grade: IP32 Transit Speed: 30~40 persons/min
Motor Type: Brush DC24V Power Supply: 220V±10%, 110V±10%
Cahaya Tinggi:

sistem gerbang kecepatan

,

pedestrian gate access control


Deskripsi Produk



Stainless Steel Double Automatic Swing Barrier Gate With Dry Contact Interface





Quick Detail:





  • Name: Swing Barrier gate
  • Application: Indoor and outdoor(shelter)
  • Feature: Auto-reverse passing
  • Interface : Dry contact interface:
  • Motor material: Ateel and aluminum alloy
  • Certificate: CE,ISO
  • Protect grade:IP32
  • Motor type: DC24V,brush
  • Opening time:1s





Description:





1. WEJOIN swing barriers have a compact electro-mechanical design with unique drive which and a self-lock mechanism to ensure product durability and silent operation



2. Secondly, .WEJOIN swing barriers have automatic detection for malfunctions, which will be convenient for customer to maintain and operate.



3. Thirdly, WEJOIN swing barriers have input interface that are available for dry contact and switch signal connections. So customers can connected the swing barrier with different system, like card reader, ticket system, token system and finger printer, etc.



4. Fourthly,  WEJOIN swing barriers input interface available for dry contact and switch signal connection,after the flaps open if no pedestrian passes in a fixed time, the system will cancel the order and the auto-delay closing time is adjustable.



5. Fifthly,  WEJOIN swing barriers can be integrated with fire control device, which allow the release on emergency for security consideration.



6. Lastly,WEJOIN swing barriers have audible and visual alarm in case of unauthorized access, which can strengthen the entrance security.





Specifications





Model

Item

Swing Barrier Mechanism
 Input Interface  Dry Contact and Switch Signal Connection
Mechanism Dimension 108*450mm
 Swing Direction double direction or single
 Material  Steel and Aluminum Alloy
Driving Motor DC24V,brush
Arm Length(Optional) 500-900mm
Working Temperature —25°C~50°C
Starting time after power on  3s
Time for Opening or Closing 1s
Voltage Motro 220V±15% ,110V±15%
Working Environment Indoor / Outdoor (Shelter)
Transit Speed 30~40 persons/min
Relative Humidity ≤90%, with no condensation
