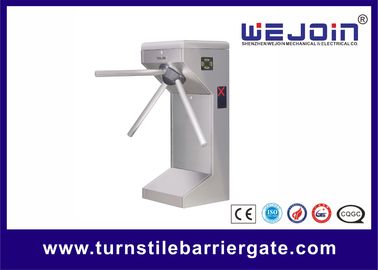

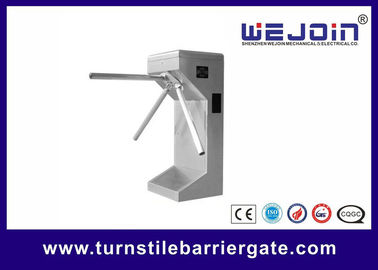

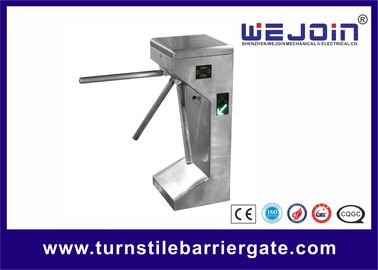

Vertical-typed Tripod Turnstile Used in Corporations and High-level Community

Informasi Dasar
Place of Origin: Guang dong, China
Nama merek: WEJOIN
Sertifikasi: CE;ISO
Model Number: WJTS122
Minimum Order Quantity: 1set
Harga: USD+620-680+set
Packaging Details: wooden case
Payment Terms: T/T
Supply Ability: 3000+setsr+per month
Informasi Detail
Bahan perumahan: 304 Baja Tahan Karat Panjang Tiang: 490mm
Arah Berputar: Arah Ganda Tegangan Kerja Motor: DC12V
Cahaya Tinggi:

gerbang penghalang pejalan kaki

,

gerbang masuk keamanan

,

Pintu Putar Tripod yang diketik vertikal


Deskripsi Produk

Functions & Features



 Full-automatic type

(1). Stainless steel Housing.

(2). Bi-direction pass.

(3). Arms auto drop when power off.

(4). Arms auto rise up when power on and auto stop on obstacle.

(5). Traffic light indicator.

(6). Wingen 26/Dry contact, is compatible with smart card for access control.

(7). Photoelectric inspection.

(8). If the passenger does not pass in valid time, the passage will be locked up. And the valid passing time can be set up by operator.

(9). Passenger counters (optional).



                                          Model
Item
WJTS122
Manual, Semi or Full-automatic Full-automatic
Material of Housing 304 Stainless Steel
Thickness of Housing 1.50mm
Dimension of Housing
(L×W×H mm)
420×380×1000
Length of Pole (out of housing) 490mm
Net Weight 50kg
Max Load-bearing of Pole 80kg
Driving Force of Pole 3kg
Rotating Direction Double Direction
Power Supply 220V±10%, 110V±10%
Frequency 50/60HZ
Working Voltage of Motor DC12V
Rated Power 50W
Driving Motor Brush DC Motor
Communication Interface RS232 standard socket/LAN socket
Input Interface DC12V electrical leveel signal, more than 10ms, or DC12V impulse signal driveing current, more 10mA
Transit Speed 20~35 persons/min
Working Temperature 15°C~55°C
Working Environment Indoor / Outdoor (Shelter)
Relative Humidity ≤90%, no condensation
