E40Pro Barrier Gate | Chinese-style Community Entrance

Project Overview

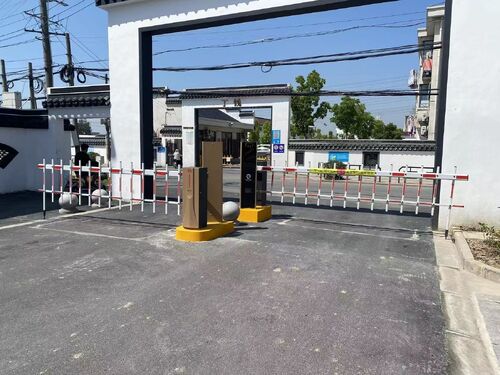

This project is a vehicle access control solution for the main entrance of a Chinese-style residential community. The single lane has a clear width of 4.5 meters. E40Pro intelligent barrier gates with 4.5m fence arm are deployed, equipped with non-spring machine core. Located at the entrance of a community with traditional Chinese architectural style, the site mainly handles resident private cars, with mixed traffic of non-motor vehicles and pedestrians. The entrance is integrated with a Chinese-style gate building, requiring high coordination of equipment appearance, smooth operation and low maintenance frequency. The gates are integrated with license plate recognition systems to realize orderly vehicle access and strengthen entrance security control.

Hardware Specifications

• Barrier gate model: E40Pro
• Boom specification: 4.5m fence arm with double-layer frame structure
• Core mechanism: non-spring machine core, eliminating traditional balance spring structure
• Drive mode: DC variable frequency motor drive
• Boom speed: adjustable from 3s to 6s
• Operating temperature: -30℃～70℃
• Input voltage: AC100～265V wide voltage adaptation
• Protection class: IP54, suitable for open-air outdoor conditions
• Control feature: Multi-vertical-bar fence structure with strong physical barrier ability, effectively blocking pedestrians and non-motor vehicles from illegal passing

Implementation Key Points

1. Foundation adaptation installation: Matching the layout of the Chinese-style gate building, a concrete foundation is poured on site, and the cabinet is horizontally fixed with expansion bolts. The equipment layout is coordinated with the architectural style without damaging the overall landscape of the community.
2. Boom assembly and commissioning: The 4.5m fence arm is assembled in sections on site and fixed to the mechanism output end through dedicated connectors. Operation balance parameters are preset before delivery. The non-spring machine core achieves torque balance through motor torque, requiring no on-site spring tension adjustment and ensuring convenient, efficient installation.
3. Community system integration: Connected to the community vehicle management system and linked with ANPR devices to realize automatic opening for resident vehicles and registered access for temporary visitors. It supports RS485 communication to connect with the community smart security platform for centralized entrance management.
4. Multiple safety protection: Standard obstacle rebound function automatically lifts the boom when resistance is detected during closing. Combined with loop coil anti-crush detection and the physical barrier of the fence arm, it forms dual protection to avoid vehicle collision damage and effectively prevent pedestrians and non-motor vehicles from tailgating through the gate.

Project Operation Benefits

For conventional spring-balanced barrier gates in long-term community use, balance springs are prone to fatigue and elasticity loss, requiring regular adjustment and replacement and resulting in high maintenance costs. Ordinary straight booms can hardly restrict illegal passing of pedestrians and non-motor vehicles, leaving potential safety risks. The E40Pro adopts non-spring machine core, structurally removing vulnerable spring components, significantly reducing long-term maintenance frequency and cost while delivering more stable operation. The 4.5m fence arm not only fully covers the lane width, but also strengthens physical access control to adapt to mixed traffic scenarios in communities. Meanwhile, the concise equipment appearance fits in well with the landscape style of the Chinese-style community.
