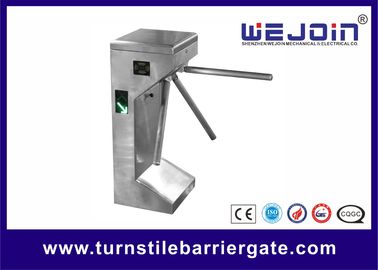

Tripod Turnstile Gate Entrance Gate Security Systems Pedestrian Access Control for Bus Station

Informasi Dasar
Place of Origin: Shenzhen,China
Nama merek: WEJOIN
Sertifikasi: ISO 9001:2008,CE,
Model Number: WJTS122
Minimum Order Quantity: 1set
Harga: negotiation
Packaging Details: Export Wooden Case
Delivery Time: 3-15 days depending on the quantity
Payment Terms: T/T,Western Union
Supply Ability: 1,000 set/month
Informasi Detail
Sumber Daya listrik: 220V±10%, 110V±10% Mengemudi motor: motor DC
Nama: Pintu Putar Tripod Nilai daya: 36W
Arah berputar: Nilai daya penggerak: 3kg
Cahaya Tinggi:

gerbang masuk keamanan


sistem keamanan gerbang masuk


Gerbang Pintu Putar Tripod Stasiun Bus

Deskripsi Produk


Entrance Gate Security Systems Pedestrian Access Control for Bus Station



Quick Detail:



  1. Name;Automatic Tripod turnstile
  2. Power Supply:220V/ 110V±10%
  3. Transit speed:30~40 person/min
  4. Rotating Direction:Double Direction
  5. Frequency:50/60HZ
  6. Arm length:490mm
  7. Driving Motor:DC Motor
  8. Housing material:Stainless Steel 304/ Iron with Powder
  9. Application: Bus station



Function and Features:



1. Special wheel mechanism is used here to realize the function of fixing and also unfixing all the parts of the turnstile
2. All the system runs stable with little noise and no mechanical impact
3. It can self-check and alarm which will be make it convenient to use
4. Several ways of working molds can be chosen at your request
5. It can work bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds can be set by the buttons in the main control board
6. Beam falling and lifting can be controlled in far distance so to satisfy the special requirement of the users and the request of fire protection
7. Beam can be lifted and fall when electricity is cut-off
8. It has the standard electrical interface which can be connected with various kinds of reader and writer equipment
9. So all the functions can be realized in one integration machine and can be controlled and managed by the computer in the far distance
10. The number of the persons who have passed by can be counted automatically which can also be displayed in LED
11. Direction-guide lights are in the turnstile to tell you which direction can go or which cannot
12. You can set the function with or without card-reading memory according to your requirement
13. The number of the persons who can pass by the turnstile can be set to meet the requirement of some special occasions
14. After reading the card, if the person who punched the card does not pass it within the set time, then this chance to access will be canceled, and the set time can be changed according to your request






Manual, Semi or Full-automatic Full-automatic
Material of Housing 304 Stainless Steel Iron with Powder
Thickness of Housing 1.50mm
Dimension of Housing
(L×W×H mm)
420×380×1000 1235×280×1000 1235×280×1000 420×380×1050
Length of Pole (out of housing) 490mm
Net Weight 50kg 70kg 70kg 45kg
Max Load-bearing of Pole 80kg
Driving Force of Pole 3KG
Rotating Direction Double Direction
Power Supply 220V±10%, 110V±10%
Frequency 50/60HZ
Working Voltage of Motor DC12V
Rated Power 50W
Driving Motor DC Motor
Input Interface DC12V electrical leveel signal, more than 100ms,
or DC12V impulse signal driveing current, more 10mA
Transit Speed 30~40 persons/min
Working Temperature -40°C~55°C
Working Environment Indoor / Outdoor (Shelter)
Relative Humidity ≤95%






The tripod turnstiles can be used in places such as restaurants, hotels, office buildings, museums, gyms, clubs, metros, bus stations, high class communities, intelligent buildings, hotels, subway stations and other high level venues, ect.



After-sale Service:



1 year warranty

Lifetime Service with charge accordingly
