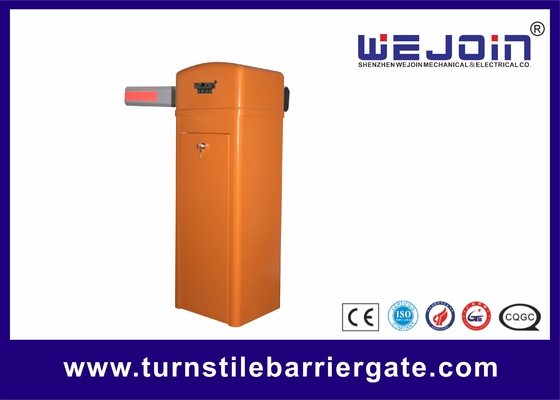

100-265V AC Access Control 4-6m Telescopic Arm Barrier Gate for Parking Lot
Parking Barrier Gate Technical Data
Model: WJDZ04VF (speed 1.5 - 6s adjustable)
Running Speed: 1.5 - 6s,
Boom-Type: Straight, 90° Folding, 180° Folding, 2 Fence, 3 Fence
Max Boom Length: 3 - 6m, 5m, 4m, 4.5m, 4m
Housing Dimension: 336*325*1030MM, 335*285*920MM
Input Voltage: AC100 - 265V
Frequency: 50/60HZ
Motor Voltage: DC24V
Enclosure Rating: IP54
Working Temperature: -30℃ ~ +70℃
MTBF: 4000000 times
Traffic Flow Application: 3000 times/24 hours
Max Motor Power: 180W
Max Motor Speed: 500r/min
Max Torque: 260N.m
Barrier Gate Packing List
|
Name
|
Specification
|
Quantity
|
Unit
|
Application
|
|
Screws, Nuts, Flat Pad
|
M12*70
|
2
|
sets
|
Fixing the boom
|
|
Boom Fixing Bar
|
|
1
|
pcs
|
Fixing the boom
|
|
Boom Holder Plastic Cover
|
|
1
|
sets
|
Optional
|
|
Cabinet Fixing Bar
|
|
2
|
pcs
|
Fixing the cabinet
|
|
Expansion Screws
|
M16*150
|
4
|
sets
|
Fixing the cabinet
|
|
Support Post
|
|
1
|
pc
|
Optional
|
|
Radio Emitter
|
|
1
|
pcs
|
Optional
|
|
Keys
|
|
2
|
pcs
|
For the cabinet door
|
|
Remote Controller
|
|
2
|
pcs
|
|
|
Manual
|
|
1
|
pcs
|
|
Warranty and Service Items
1. Free service is offered for component parts in one year warranty time. (not includes the barrier boom or remote)
2. Lifetime service with charge accordingly.
3. Technical questions are supported.
4. The below items and situations are not included in the range of free service:
4.1. The user does not follow the instruction and cause any damage of the product.
4.2. The power supply is not stable, over the range of permitted voltage or not accordant to safety electric using standard.
4.3. The user installs or uses the product in wrong methods, cause damage to the appearance of product.
4.4. Natural disaster causes damage to the product.
4.5. Warranty time is over.
4.6. Service items are out of our promises.
Wire Control Interface
This interface is available for parking system, also available for external controller to control barrier gate.
UP: Short circuit “UP” and “GND”
Down: Short circuit “Down” and “GND”
Stop: Short circuit “Stop” and “GND”
