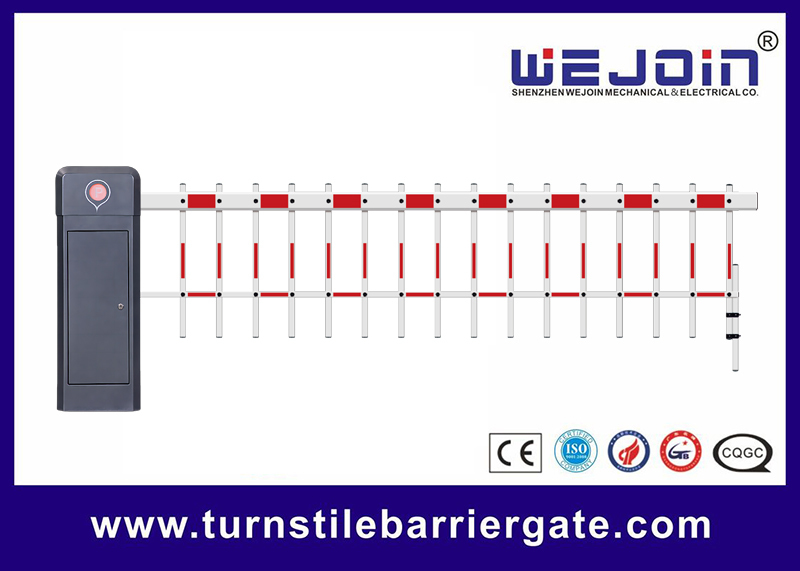

Automatic Arm Barrier System Traffic Boom Vehicle Barrier Gate Two Fence Boom

50 set
MOQ
Dapat dinegosiasikan
harga
Automatic Arm Barrier System Traffic Boom Vehicle Barrier Gate Two Fence Boom
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Tipe booming: Boom lipat 90 derajat
Voltase: AC 110V-265V
Panjang Boom: Max 6m (disesuaikan)
Jaminan: 2 Tahun
Warna Perumahan: Emas
Aplikasi: Tempat parkir
Menyoroti:

automatic arm barrier system

,

traffic boom vehicle barrier

,

two fence boom gate
Informasi dasar
Tempat asal: Cina
Nama merek: WEJOIN
Sertifikasi: CE ISO
Nomor model: CB01VF-I
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Karton
Waktu pengiriman: 15 hari kerja setelah pembayaran diterima
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 10000 set/bulan
Deskripsi Produk

Automatic Arm Barrier System Traffic Boom Vehicle Barrier Gate Two Fence Boom


Vehicle Barrier Gate Technical Data
Model WJCB01VF-H WJCB01VF-I
Running Speed 1-4S 2-6S 6S 6S 6S 6S
Boom Type Straight Straight 90° Folding 180° Folding 2 Fence 3 Fence
Max Boom Length 4.5M 4M~8M 5M 4M 4.5M 4M
Input Voltage AC100-265V
Frequency 50/60HZ
Motor Voltage DC24V
Enclosure Rating IP54
Working Temperature -30°C ~ +70°C
MTBF 6000000 times
Traffic Flow Application 24 hours uninterrupted operation
Max Motor Power 240W 180W
Max Motor Speed 500r/min 360r/min
Max Torque 280N.m 320N.m

Vehicle Barrier Gate Functions & Features
1). DC variable frequency control motor drive, equipped with a connecting rod transmission mechanism, a balance spring, stable and reliable operation, motor life up to 6 million times, and spring life 500,000 times.
2). With auto-reversing on obstacle function, the boom will auto reverse when it meets obstacle during the closing process.
3). Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4). Manual clutch design: when power-of, turn the handwheel a little, then move the boom by hand.
5). Double tension spring crank transmission design, for more stable and reliable structure.
6). No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
7). More sensitive and reacting faster when reversing on obstacles.
8). With counting, delay auto-closing, and auto-aging test function.
9). 4-digit digital tube display, displays more information.
10). NO/NC wire control signal input are optional.
11). Integrated RS485 communication, infrared photocell and loop detector interface. RJ45 network, loop detector, and radar module can be added.

Barrier Fence Boom Installation

Step 1. Fix the boom fixing plate on boom with 2pcs of M12*70mm hexagon screw.

Step 2. Hold the fixing plate by hand, then lift up the boom vertically and install it on the boom holder. And then install the flat washer, spring washer, and M12 nut on the screw in turn, and fix the screw with a wrench.

Step 3. Fix the U-connecting unit to the cone axis on barrier with screw.

Step 4. Fix the bottom fence to the U-connecting unit, then release the 2pcs screw of the unit and adjust them to make the fence be perpendicular to the ground.

Automatic Arm Barrier System Traffic Boom Vehicle Barrier Gate Two Fence Boom 0
