Rumah /Produk/Otomatis Barrier Gate/Nice electromechanical 5m 90 Degree Folding Arm for Automatic Arm Barrier System

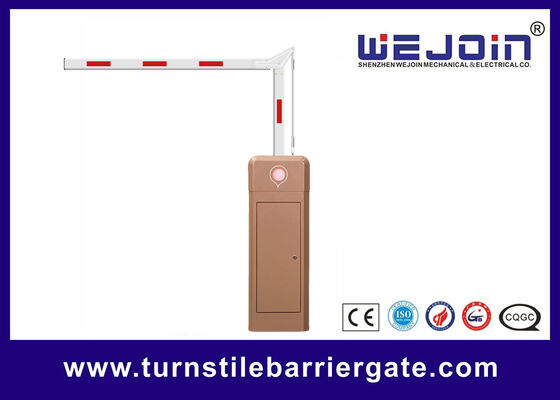

Nice electromechanical 5m 90 Degree Folding Arm for Automatic Arm Barrier System

50 set
MOQ
Dapat dinegosiasikan
harga
Nice electromechanical 5m 90 Degree Folding Arm for Automatic Arm Barrier System
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Tipe booming: Boom lurus / Boom Floding
Voltase: AC 110V-265V
Panjang Boom: Max 6m (disesuaikan)
Jaminan: 2 Tahun
Warna Perumahan: Emas
Aplikasi: Tempat parkir
Menyoroti:

electromechanical folding arm barrier

,

5m automatic barrier gate

,

90 degree arm barrier system
Informasi dasar
Tempat asal: Cina
Nama merek: WEJOIN
Sertifikasi: CE ISO
Nomor model: CB01VF-I
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Karton
Waktu pengiriman: 15 hari kerja setelah pembayaran diterima
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 10000 set/bulan
Deskripsi Produk

Nice electromechanical 5m 90 Degree Folding Arm for Automatic Arm Barrier System


Vehicle Barrier Gate Technical Data

  • Model: WJCB01VF-H, WJCB01VF-I

  • Running Speed: 1-4S, 2-6S

  • Boom Type: Straight, 90° Folding, 180° Folding, 2 Fence, 3 Fence

  • Max Boom Length: 8M

  • Input Voltage: AC100-265V

  • Frequency: 50/60HZ

  • Motor Voltage: DC24V

  • Enclosure Rating: IP54

  • Working Temperature: -30°C ~ +70°C

  • MTBF: 6,000,000 times

  • Traffic Flow Application: 24 hours uninterrupted operation

  • Max Motor Power: 240W, 180W

  • Max Motor Speed: 500r/min, 360r/min

  • Max Torque: 280N.m, 320N.m


Barrier Gate Controller Interface Explanations

Item

Explanation

Wire Control Interface

This interface is available for parking system, also available for external controller to control barrier gate.

UP: Short circuit “UP” and “GND”

Down: Short circuit “Down” and “GND”

Stop: Short circuit “Stop” and “GND”

Anti-smashing Interface

Infrared Photocell: boom will lift up when short circuiting “Infrared photocell interface” and “GND”  during boom down.

Loop Detector: boom will lift up when short circuiting “loop detector interface” and “GND” during boom down; in up limit position, boom will fall down automatically after these two interfaces disconnected.


Boom Barrier Gate Functions & Features

1. DC variable frequency control motor drive, equipped with connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life up to 6 million times, spring life 500,000 times.

2. With auto-reversing on obstacle function, the boom will auto reverse when it meets obstacle during the closing process.

3. Support external radar, coil, infrared anti-smashing function, built-in DC 12V power output, can be used for external radar power supply.

4. Support RS485 communication or RS485 off-line connection.

5. Optional Bluetooth module, convenient debugging of barriers through small programs.

6. Large LCD screen display, English visual menu, easy function selection and debugging.

7. Left-installation and right-installation can be changed.



Nice electromechanical 5m 90 Degree Folding Arm for Automatic Arm Barrier System 0
