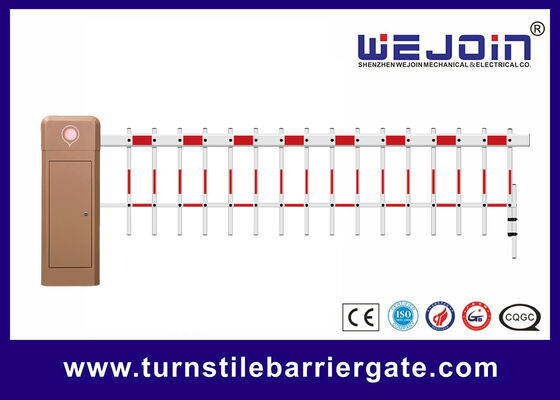

Shenzhen ISO Approved 100% Duty Cycle Nice electromechanical 4.5m Two Fence Arm for High-Grade Residential Area

50 set
MOQ
Dapat dinegosiasikan
harga
Shenzhen ISO Approved 100% Duty Cycle Nice electromechanical 4.5m Two Fence Arm for High-Grade Residential Area
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Tipe booming: Boom lurus / Boom Floding
Voltase: AC 110V-265V
Panjang Boom: Max 6m (disesuaikan)
Jaminan: 2 Tahun
Warna Perumahan: Emas
Aplikasi: Tempat parkir
Menyoroti:

ISO approved automatic barrier gate

,

electromechanical fence arm barrier

,

high-grade residential barrier gate

Informasi dasar
Tempat asal: Cina
Nama merek: WEJOIN
Sertifikasi: CE ISO
Nomor model: CB01VF-I
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Karton
Waktu pengiriman: 15 hari kerja setelah pembayaran diterima
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 10000 set/bulan
Deskripsi Produk

Shenzhen ISO Approved 100% Duty Cycle Nice electromechanical 4.5m Two Fence Arm for High-Grade Residential Area


Barrier Gate Controller Interface Explanations

Item

Explanation

Wire Control Interface

This interface is available for parking system, also available for external controller to control barrier gate.

UP: Short circuit “UP” and “GND”

Down: Short circuit “Down” and “GND”

Stop: Short circuit “Stop” and “GND”

Anti-smashing Interface

Infrared Photocell: boom will lift up when short circuiting “Infrared photocell interface” and “GND”  during boom down.

Loop Detector: boom will lift up when short circuiting “loop detector interface” and “GND” during boom down; in up limit position, boom will fall down automatically after these two interfaces disconnected.

RS485 Communication Interface

It is used for controlling the barrier gate or checking the status of the barrier gate by computer or system; also used for online controlling the paired barrier gates synchronously.

DC12V Power Output

Provide 1A current output, available for radar or small light strips.


Boom Barrier Gate Functions & Features
  1. Motor Drive System: Features a DC variable frequency control motor paired with a robust connecting rod transmission mechanism and a balancing spring system. This design ensures exceptionally stable, smooth, and reliable operation. Key components are engineered for longevity, with the motor rated for up to 6 million cycles and the balance spring for 500,000 cycles.

  2. Advanced Safety - Obstacle Detection: Incorporates an intelligent auto-reversing function upon obstacle contact. If the boom encounters any obstruction during its downward closing motion, it will immediately and automatically reverse direction to prevent damage and enhance safety.

  3. Integrated Safety & Power: Designed to seamlessly support external safety accessories, including radar detectors, loop detectors, and infrared photoelectric beams for comprehensive anti-crashing protection. For added convenience, it features a built-in DC 12V power output, which can be used to directly power external devices like radar sensors, simplifying installation.


Vehicle Barrier Gate Technical Data
  • Model: WJCB01VF-H, WJCB01VF-I

  • Running Speed: 1-4S, 2-6S

  • Boom Type: Straight, 90° Folding, 180° Folding, 2 Fence, 3 Fence

  • Max Boom Length: 8M

  • Input Voltage: AC100-265V

  • Frequency: 50/60HZ

  • Motor Voltage: DC24V

  • Enclosure Rating: IP54

  • Working Temperature: -30°C ~ +70°C

  • MTBF: 6,000,000 times

  • Traffic Flow Application: 24 hours uninterrupted operation

  • Max Motor Power: 240W, 180W

  • Max Motor Speed: 500r/min, 360r/min

  • Max Torque: 280N.m, 320N.m
