RS 485 Parking Barrier Arm Gate With Auto-closing IP 44 For Access Control

Informasi Dasar
Tempat asal: Cina
Nama merek: WEJOIN
Sertifikasi: CE ISO SGS
Model Number: WJDZ102
Kuantitas min Order: 1 Set
Harga: Negotiation
Kemasan rincian: Karton
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union
Menyediakan kemampuan: 10000 Set / Bulan
Informasi Detail
Material: 304 stainless steel Manuak Release: YES
Color: Orange Cooling -fan: YES
Communication module: RS 485 Power: 120 w
Cahaya Tinggi:

parking lot arm gate

,

Car Park Hambatan


Deskripsi Produk

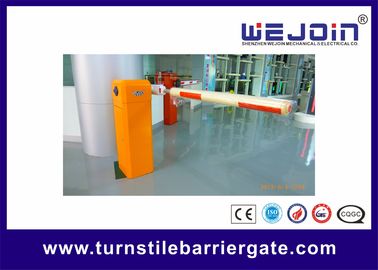

RS 485 Parking  Barrier Arm Gate With Auto-closing IP 44 For Access Control



Quick Detail:



Name: High Speed Barrier Gate

Application : Highway toll

Speed:1 second

Feature: Manual release

Rated Power: 80W

Certificate:CE, ISO,

Net Weight: 60KG

Voltage: AC220V, AC110V





Description:





Model Selection and Differences





Model Boom Shape Max Boom Length Speed
WJDZ10216 Straight boom 6m 6 seconds
WJDZ10213 Straight boom 4.5m 3 seconds
WJDZ10211 Straight boom 3m 1 second
WJDZ10226 90 degree, Articulated boom 5m 6 seconds
WJDZ10223 90 degree, Articulated boom 3m 3 seconds
WJDZ10236 180 degree, Articulated boom 5m 6 seconds
WJDZ10233 180 degree, Articulated boom 3m 3 seconds
WJDZ10246 Two-level, fence boom 4.5m 6 seconds
WJDZ10256 Three level, fence boom 4m 6 seconds





Functions & Features:





1. Manual release device to operate the barrier when power failure

2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation

3. Motor cooling fan to avoid the over-heating possibility

4. Automatic reversing when the barrier boom meets the obstruction

5. Auto closing realization through menu setting on the control panel

6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light

7. RS485 Communication Module is compatible





Applications:





Fast Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate runs in high speed but stably. The running time is 1 second. It can be used for highway toll, parking system, factory gate, and so on.




why we to choose WEJOIN High Speed Barrier Gate?





1. High Speed Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate runs in high speed but stably. The running time is 1 second. It can be used for highway toll.

2. High Speed Barrier Gate uses swing away boom holder. The boom is out of the holder when it is hit, which protects the barrier core and prolong lifetime of the barrier.

3. High Speed Barrier Gate uses the first generation motor. It is stable and has long service life performance, running 3 million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.

4. The barrier core is special and main parts are aluminum alloy casting. The barrier gate will automatically reverse when the boom meets the obstruction. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. Manual release device can operate the barrier when power failure.

5. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.





Communication with customers





Q: What's WEJOIN monthly production capacity for barrier gate?

A: 3000 units.



Q: As for the over-heating problem of barrier gate

A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.



Q: Sometimes, Why the barrier boom would open automatically?

A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.

Q: What’s the remote control distance?

A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.
